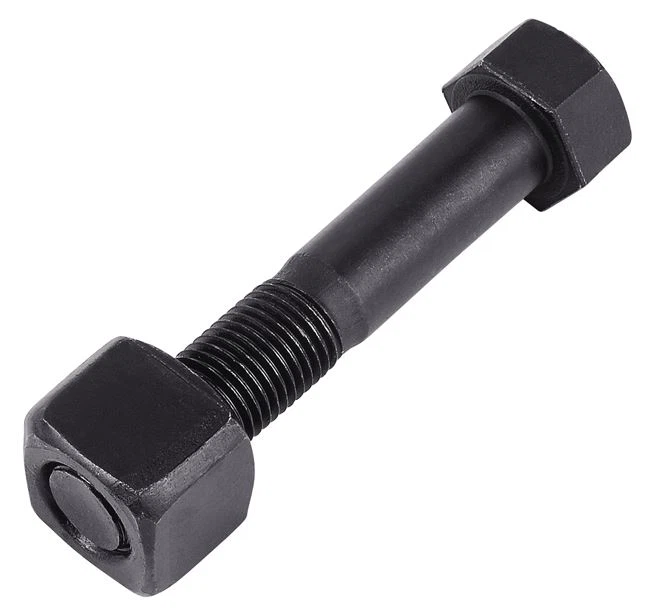

Sliežu ceļa kurpju skrūves un uzgriežņi
2.Size: 1/2-1 3/8; M12-M36 M12-M36
3.Mehāniskā pakāpe: 12,9
4.Case sacietēšana: HRC38-HRC42
5.ISO9001:2008 5.ISO9001:2008 5.ISO9001:2008
Nosūtīt pieprasījumu
Product Details ofSliežu ceļa kurpju skrūves un uzgriežņi
Produkta informācija Track Shoe Bolt Nut
1.Izejvielas: 40Cr
2.Size: 1/2-1 3/8; M12-M36 M12-M36
3.Mehāniskā pakāpe: 12,9
4.Case sacietēšana: HRC38-HRC42
5.ISO9001:2008 5.ISO9001:2008 5.ISO9001:2008
Process
Specifikāciju
| Nē. | OEM PN # | Dimensiju | SKRŪVE W | Uzgriežņa W |
| 1 | 2B5484+7K1706 2B5484+7K1706 | 7/16''- 20*1 9/16'' UNF | ||
| 2 | 2B5483 2B5483 2B5483 | 7/16''- 20 UNF | ||
| 3 | 102-8072+102-8073 102-8072+102-8073 | 1/2'*1 3/8'' UNF | ||
| 4 | 093-0251+093-0316 093-0251 +093-0316 | 1/2'-20*1 1/2'' UNF | 0.059 | |
| 5 | 8H7504+6S3419 8H7504+6S3419 | 1/2'-20*1 1/2'' UNF | 0.059 | S:0.033 S: 0,033 |
| 6 | 0S1584 0S1584 | 1/2'-20*1 11/16'' UNF | ||
| 7 | TB1/2*1 7/8 TB1/2 *1 7/ 8 | 1/2'-20*1 7/8'' UNF | 0.065 | |
| 8 | 2A3223 2A3223 2A3223 | 1/2'-20*1 57/64'' UNF | ||
| 9 | TB1/2*2 TB1/2*2 | 1/2'-20*2'' UNF | 0.067 | |
| 10 | 8H5724 8H5724 | 1/2'-20 UNF 1/ 2'-20 UNF | H:0.025 H: 0.025 | |
| 11 | TB9/16*1 3/4 TB9/16 *1 3/4 | 9/16'''-18*1 3/4'' UNF | 0.086 | |
| 12 | 4K7038+7K2017 4K7038 +7K2017 | 9/16'''-18*1 5/8'' UNF | 0.089 | S:0.044 S: 0,044 |
| 13 | 7H3596+7K2017 7H3596 +7K2017 | 9/16''-18*1 15/16'' UNF | 0.101 | |
| 14 | 2F1009 nodaļa | 9/16''-18*2'' UNF | 0.104 | |
| 15 | 5A3187+7K2017 5A3187 +7K2017 | 9/16''-18*3'' UNF | 0.133 | |
| 16 | TB9/16*3 1/8 TB9/16*3 1/8 | 9/16''-18*3 1/8'' UNF | 0.139 | |
| 17 | 7H3606 7H3606 | 9/16''-18UNF 9/16''-18UNF | H:0.037 H: 0.037 | |
| 18 | TB5/8*1 15/16 | 5/8''-18*1 15/16'' UNF | ||
| 19 | 7H3597+1M1408 7H3597 + 1M1408 | 5/8''-18*2 3/32'' UNF | 0.13 | S:0.06 S: 0,06 |
| 20 | TB5/8*2 3/32 | 5/8''-18*2 3/32'' UNF | 0.13 | |
| 21 | 9G3110+1M1408 9G3110 + 1M1408 | 5/8''-18*2 5/32'' UNF | ||
| 22 | SH8756 SH8756 | 5/8''-18*2 1/4'' UNF | 0.135 | |
| 23 | TB5/8*2 1/2 | 5/8''-18*2 1/2'' UNF | 0.15 | |
| 24 | TB5/8*2 3/4 | 5/8''-18*2 3/4'' UNF | 0.163 | |
| 25 | TB5/8*3 | 5/8''-18*3'' UNF | 0.17 | |
| 26 | 5A4104+1M1408 5A4104 +1M1408 | 5/8''-18*3 3/8'' UNF | 0.176 | |
| 3T3884+1M1408 3T3884 +1M1408 | 5/8''-16*3 1/2'' UNF | |||
| 27 | TB5/8*3 3/4 | 5/8''-18*3 3/4'' UNF | 0.192 | |
| 28 | TB5/8*4 | 5/8''-18*4'' UNF | 0.22 | |
| 29 | 7H3607 7H3607 | 5/8''-18 UNF | H:0.047 H: 0.047 | |
| 30 | 1S1859+1S1860 1S1859+1S1860 | 3/4'''-16*2 5/32'' UNF | 0.206 | S:0.08 S: 0.08 |
| 31 | 144-32-11211 | 3/4''-16*2 13/64'' UNF | ||
| 32 | 207-32-11310 | 3/4''-16*2 13/64'' UNF | ||
| 33 | 150-32-21321 | 3/4''-16*2 3/8'' UNF | 0.224 | |
| 34 | 154-32-21320 | 3/4''-16*2 3/8'' UNF | 0.224 | |
| 35 | 7H3598+1S1860 7H3598 +1S1860 | 3/4''-16*2 13/32'' UNF | 0.23 | |
| 36 | 6V1792 +1S1860 6V1792 +1S1860 | 3/4''-16*2 7/16'' UNF | 0.23 | |
| 37 | 1S8804/154-32-11210 1S8804/154-32-11210 | 3/4''-16*2 31/64'' UNF | ||
| 38 | 7F8619 7F8619 | 3/4''-16*2 3/4'' UNF | ||
| 39 | TB3/4*3 TB3/4*3 | 3/4''-16*3'' UNF | 0.25 | |
| 40 | 9S1837 9S1837 | 3/4''-16*3 15/32'' UNF | 0.296 | |
| 6T2162+1S1860 6T2162+1S1860 | 3/4''-16*3 5/8'' UNF | |||
| 41 | 5A7524+1S1860 5A7524+1S1860 | 3/4''-16*4'' UNF | 0.308 | |
| 42 | 9S1838 9S1838 | 3/4''-16*4 1/8'' UNF | 0.31 | |
| 43 | 2P9670 2P9670 | 3/4''-16*4 13/32'' UNF | 0.338 | |
| 44 | TB3/4*4 3/4 | 3/4''-16*4 3/4'' UNF | 0.397 | |
| 45 | 7H3608/150 32-21331 7H3608/150-32-21331 | 3/4''-16UNF 3/4''-16UNF | H:0.07 H: 0.07 | |
| 46 | 154-32-21330 | 3/4''-16UNF 3/4''-16UNF | ||
| 47 | TBNS3/4 TBNS3/4 | 3/4''-16UNF 3/4''-16UNF | ||
| 48 | TBNS3/4 TBNS3/4 | 3/4''-16UNF 3/4''-16UNF | ||
| 49 | TB7/8*2 17/32 TB7/8*2 17/32 | 7/8''-14*2 17/32'"UNF | 0.32 | |
| 50 | 9M7444 9M7444 | 7/8''-14*2 41/64'UNF | 0.327 | |
| 51 | 7H3599+2S2140 7H3599 +2S2140 | 7/8''-14*2 21/32'"UNF | 0.328 | S:0.15 S: 0,15 |
| 52 | 1H4215 1H4215 | 7/8''-14*2 23/32'"UNF | 0.33 | |
| 53 | 170-32-11212+170-32-11222 170-32-11212 +170-32-11222 | 7/8''-14*3'UNF | 0.355 | |
| 54 | 7T2748+7G6442 7T2748+7G6442 | 7/8''-14*3 11/32'"UNF | 0.385 | |
| 55 | 6V1723+7G6442 6V1723 + 7G6442 | 7/8''-14*3 13/32'"UNF | 0.39 | |
| 56 | TB7/8*4 27/32 TB7/8*4 27/32 | 7/8'''-14*4 27/32'"UNF | 0.49 | |
| 57 | TB7/8*5 3/4 | 7/8''-14*5 3/4'"UNF | 0.56 | |
| 58 | 7H3609 7H3609 | 7/8''-14UNF 7 / 8''-14UNF | ||
| 59 | 2M5657+1S6421 2M5657+1S6421 | 1'''-14*2 15/16'' UNF | 0.458 | S:0.151 S: 0,151 |
| 60 | 9M7445 9M7445 | 1'''-14*2 31/32'' UNF | ||
| 61 | 3T6308+2V0250 3T6308 +2V0250 | 1'''-14*3 1/8'' UNF | 0.5 | |
| 62 | 6V1726+7G0343 6V1726 + 7G0343 | 1'''-14*3 3/16'' UNF | ||
| 63 | 6T2638+7G0343 6T2638+7G0343 | 1'''-14*3 35/64'' UNF | 0.535 | T:0.23 T: 0.23 |
| 64 | 2M5656 2M5656 | 1''-14* UNF 1''-14* UNF | ||
| 65 | 7T1000+5P8221 | 1 1/8'*3 25/32'' UNF | 0.74 | T:0.315 T:0.315 |
| 66 | 5P3868+5P8221 5P3868 +5P8221 | 1 1/8'*4 13/32'' UNF | ||
| 67 | 101-32-11210 | M12*1.25*35 | ||
| 68 | 201-32-11210 | M12*1.25*35 | ||
| 69 | Tb12037 TB12037 | M12*1.25*37 | 0.053 | |
| 70 | 201-32-11210 | M12*1.25*39 | 0.056 | |
| 71 | 106-32-11210 | M12*1.25*47* | 0.064 | |
| 72 | 01803-01218 | M12*1.25 M12 * 1,25 | H:0.027 H:0.027 | |
| 73 | TBNS12 TBNS12 | M12*1.25 M12 * 1,25 | S:0.036 S: 0.036 | |
| 74 | 093-0251+093-0316 093-0251 +093-0316 | M13*1.25*38 * | ||
| 75 | Viesnīcas, Mēn- | M13*1.25*45 | ||
| 76 | Tb14035 TB14035 | M14*1.5*35 M14*1.5*35 | 0.07 | S:0.42 S: 0,42 |
| 77 | Tb14039 TB14039 | M14*1.5*39 M14*1.5*39 | 0.083 | H:0.04 H:0.04 |
| 78 | Tb14045 TB14045 | M14*1.5*45 M14*1.5*45 | 0.88 | |
| 79 | 203-32-21210+01803-01420 203-32-21210 +01803-01420 | M14*1.5*48 | 0.092 | H:0.04 H:0.04 |
| 80 | 203-32-21210 +110-32-11420 203-32-21210 +110-32-11420 | M14*1.5*48 | 0.092 | |
| 81 | 110-32-11411+01803-01415 110-32-11411 + 01803-01415 | M14*1.5*50 M14*1.5*50 | 0.094 | |
| 82 | 203-32-21220 | M14*1.5*50 M14*1.5*50 | 0.094 | |
| 83 | 112-820-1210 | M14*1.5*55 M14*1.5*55 | 0.103 | |
| 84 | Tb14056 TB14056 | M14*1.5*56 | 0.105 | |
| 85 | TBNS14 TBNS14 | M14*1.5 M14 * 1,5 | S:0.042 S:0.042 | |
| 86 | Tb16040 TB16040 | M16*1.5*40 M16*1.5*40 | 0.112 | |
| 87 | 417538+516125 417538 +516125 | M16*1.5*46 M16*1.5*46 | 0.118 | S:0.068 S:0.068 |
| 88 | Tb16048 TB16048 | M16*1.5*48 | 0.122 | |
| 89 | LP60D01001P1(130-32-11213) LP60D01001P1 (130-32-11213) | M16*1.5*51 M16 *1,5*51 | 0.137 | |
| 90 | 203-32-51210+203-32-51220 203-32-51210 + 203-32-51220 | M16*1.5*53 M16*1.5*53 | ||
| 91 | 096-104+093-0319 096-104+093-0319 | M16*1.5*55 M16*1.5*55 | ||
| 92 | 130-32-11213+130-32-11220 130-32-11213+130-32-11220 | M16*1.5*57 M16 *1,5*57 | 0.127 | H:0.051 H: 0.051 |
| 93 | 205-32-51120 | M16*1.5*57 M16 *1,5*57 | 0.127 | T:0.056 T: 0.056 |
| 94 | 130-32-11212 | M16*1.5*57 M16 *1,5*57 | 0.127 | |
| 95 | 130-820-7212 | M16*1.5*65 M16*1.5*65 | 0.14 | |
| 96 | Tb16060 | M16*1.5*60 M16*1.5*60 | ||
| 97 | 093-0259+093-0319 093-0259 093-0319 | M16*1.5*68 M16*1.5*68 | ||
| 98 | Viesnīcas, Mēn- | M16*1.5*73 M16 *1,5*73 | 0.171 | |
| 99 | Tb16080 TB16080 | M16*1.5*80 M16*1.5*80 | 0.178 | |
| 100 | 01803-01622 | M16*1.5 M16 * 1,5 | H:0.051 H: 0.051 | |
| 101 | TBNS16 TBNS16 | M16*1.5 M16 * 1,5 | S:0.068 S:0.068 | |
| 102 | 135-32-11211 | M18*1.5*52 M18 * 1,5 * 52 | 0.159 | |
| 103 | Viesnīcas, Mēn- | M18*1.5*55 M18*1.5*55 | 0.169 | |
| 104 | 135-32-11211+135-32-11221 135-32-1121 135-11211 + 135-32-11221 | M18*1.5*57 M18 * 1,5 * 57 | 0.175 | H:0.061 H: 0.061 |
| 135-32-05001 | M18*1.5*57 M18 * 1,5 * 57 | T:0.071 T:0.071 | ||
| 105 | 093-0262+093-0320 093-0262+093-0320 | M18*1.5*58 | 0.179 | |
| 106 | 135-32-11210 | M18*1.5*58 | 0.179 | |
| 107 | 205-32-51210 | M18*1.5*58 | 0.179 | |
| 108 | 135-32-11211+01803-01824 135-32-11211 + 01803-01824 | M18*1.5*59 | H:0.061 H: 0.061 | |
| 109 | 205-32-51210 | M18*1.5*59 | ||
| 110 | 140-803-7210 | M18*1.5*64 M18*1,5*64 | 0.192 | |
| 111 | TBNS18 TBNS18 | M18*1.5 M18 * 1,5 | S:0.069 S: 0.069 | |
| 112 | Tb19055 TB19055 | M19*1.5*55 M19*1,5*55 | 0.205 | H:0.106 H: 0.106 |
| 113 | Tb19060 TB19060 | M19*1.5*60 M19*1,5*60 | 0.209 | S:0.08 S: 0.08 |
| 114 | Tb19063 TB19063 | M19*1.5*63 M19*1.5*63 | 0.224 | S:0.08 S: 0.08 |
| 115 | TB19065+150-32-21331/21330 TB19065+150-32-21331/21330 | M19*1.5*65 M19*1,5*65 | 0.23 | H:0.098 H: 0.098 |
| 116 | Tb19069 TB19069 | M19*1.5*69 M19*1,5*69 | ||
| 117 | Tb19077 TB19077 | M19*1.5*77 M19 * 1,5 * 77 | 0.259 | S:0.08 S: 0.08 |
| 118 | 144-32-21342 | M19*1.5*98 * | 0.296 | S:0.08 S: 0.08 |
| 119 | Tb20053 TB20053 | M20*1.5*53 M20*1.5*53 | 0.205 | |
| 120 | Tb20053 TB20053 | M20*1.5*53 M20*1.5*53 | 0.24 | |
| 121 | 20Y-32-11210+154-32-31220 20Y-32-11210 + 154-32-31220 | M20*1.5*55F | 0.229 | S:0.078 S: 0.078 |
| 122 | 9W3619+9W3361 9W361 + 9W3361 | M20*1.5*55* M20*1.5*55 | 0.245 | S:0.083 S: 0.083 |
| 123 | 14X-32-05000+14X-32-11220 14X-32-05000 +14X-32-11220 | M20*1.5*56 * | 0.23 | H:0.082 H: 0.082 |
| 124 | Tb20057 TB20057 | M20*1.5*57 * | 0.235 | S:0.078 S: 0.078 |
| 125 | 2404T2749 2404T2749 | M20*1.5*60 M20*1.5*60 | 0.345 | |
| 126 | 207-32-11350+01803-02026 207-32-11350 +01803-02026 | M20*1.5*63 M20*1.5*63 | 0.252 | H:0.104 H: 0.104 |
| 127 | 6Y0846+9W3361 6Y0846 +9W3361 | M20*1.5*63 M20*1.5*63 | ||
| 207-32-11340 | M20*1.5*65F M20*1.5*65F | T:0.081 T:0.081 | ||
| 128 | Tb20065 TB20065 | M20*1.5*65 M20*1.5*65 | 0.252 | |
| 129 | 154-32-11230+154-32-31220 154-32-11230 + 154-32-31220 | M20*1.5*68 M20*1.5*68 | 0.248 | |
| 130 | 154-32-21321 | M20*1.5*68.5* | ||
| 131 | 154-820-1240 | M20*1.5*68.5* | ||
| 132 | 093-0265+093-0321 093-0265 +093-0321 | M20*1.5*70 M20*1.5*70 | 0.264 | |
| 133 | Tb20075 TB20075 | M20*1.5*75 M20*1.5*75 | 0.273 | |
| 134 | Tb20085 TB20085 | M20*1.5*85* | 0.31 | 0.078 |
| 135 | 14X-32-11350 14X-32-11350 | M20*1.5*105 M20*1.5*105 | 0.35 | |
| 136 | TBNS20 TBNS20 | M20*1.5 M20 * 1,5 | S:0.0943 S:0.0943 | |
| 137 | 207-32-51210+207-32-51220 207-32-51210 + 207-32-51220 | M22*1.5*56F* | 0.272 | H:0.102 H: 0.102 |
| 138 | Tb22059 TB22059 | M22*1.5*59* | 0.27 | |
| 139 | Tb22059 TB22059 | M22*1.5*59* | 0.287 | |
| 140 | Tb22064 TB22064 | M22 1,5*64 | 0.305 | |
| 141 | 4229948+4198449 4229948+4198449 | M22*1.5*66* | ||
| 142 | 6Y9024+9W4381 6Y9024+9W4381 | M22*1.5*67* | 0.32 | S:0.105 S: 0.105 |
| 143 | Tb22072 TB22072 | M22*1.5*72 * | 0.342 | |
| 144 | 8E6103+9W4381 8E6103+9W4381 | M22*1.5*73 * | ||
| 145 | 093-0268+096-0586 093-0268+096-0586 | M22*1.5*78* | ||
| 146 | 50W 50W | M22 1.5*95 M22*1.5*95 | ||
| 147 | 01803-02228 | H:0.102 H: 0.102 | ||
| 148 | 208-32-11220 | H:0.102 H: 0.102 | ||
| 149 | 207-32-51210 | H:0.089 H: 0.089 | ||
| 150 | 208-32-51210+208-32-51220 208-32-51210 + 208-32-51220 | M24*1.5*65F M24*1.5*65F | 0.416 | |
| 151 | Tb24068 TB24068 | M24*1.5*68 | 0.402 | |
| 152 | Tb24072 TB24072 | M24*1.5*72 M24*1.5*72 | ||
| 4328034 | M24*1.5*72F M24*1.5*72F | |||
| 153 | 176-32-11210+178-32-11220 176-32-11210 + 178-32-11220 | M24*1.5*75 M24*1.5*75 | 0.418 | S:0.157 S: 0.157 |
| 154 | 175-32-11210 | M24*1.5*76.2 M24*1.5*76.2 | 0.422 | |
| 155 | Tb24079 TB24079 | M24*1.5*79 M24*1.5*79 | 0.436 | |
| 156 | 093-0271 +096-0323 093-0271 +096-0323 | M24*1.5*81 | ||
| 157 | Tb24128 TB24128 | M24*3*128 | 0.534 | |
| 158 | 01803-02430 | M24*1.5 M24 * 1,5 | H:0.148 H: 0.148 | |
| 159 | Tb22075 TB22075 | M25*1.5*75 M25*1.5*75 | 0.465 | 0.235 |
| 160 | Tb26082 TB26082 | M26*1.5*82 | ||
| 161 | 195-32-11210+195-32-11221 195-32-11210 + 195-32-11221 | M27 2.0*82 M27 * 2,0 * 82 | 0.597 | 0.232 |
| 162 | 6Y7432+6Y7433 6Y7432+6Y7433 | M27 2.0 90 M27 * 2,0 * 90 | ||
| 163 | 195-32-61210+195-32-61221 | M30 2.0 96 M30* 2,0 * 96 | 0.835 | 0.317 |
| M33*115 M33*115 | ||||
Mūsu serviss
♦ 100% kvalitātes nodrošināšana, izstrādāt un ražot sekot oriģināls tiem;
♦ saprātīga piegāde un savlaicīga piegāde;
♦ Ātrā reakcija 24 stundu laikā;
♦ ilgstošas spēcīgas un stabilas apgādes spējas;
♦ viens pret vienu produktu fabrika. Nodrošināt vislabāko kvalitāti;
♦ Pirmās klases loģistika un nodrošināt, ka jūsu preces ir ieradušās droši;
♦ Preces tiks iepakotas droši un uzmanīgi;
♦ Excellent After-sales pakalpojumu. Izsekot lietojumu. Pozitīva atgriezeniskā reakcija;
♦ Izveidot izmeklēšanu bibliotēka jums, mēs esam jūsu profesionālo izcelsmes konsultants.
Piegādes laiks:
Parasti, ja mums ir krājumi, tas prasīs aptuveni 7 dienu piegādes laiku. Vai arī pēc avansa maksājuma saņemšanas tas aizņems aptuveni 20 līdz 30 dienas. Konkrētais piegādes laiks ir atkarīgs no pasūtījuma precēm un daudzuma.
Iepakošana un nosūtīšana
Populāri tagi: sliežu kurpju bultskrūves un uzgriežņi, Ķīna, piegādātāji, ražotāji, rūpnīca, pirkt
Pāri
nēNosūtīt pieprasījumu
